POM 100B

POM^®- 100B

HIGH PURITY WELDING APPLICATIONS

US & FOREIGN PATENTS PENDING

BREAKTHROUGH BLUETOOTH TECHNOLOGY FOR REMOTE LOGGING FROM ANDROID, iOS AND WINDOWS APPLICATIONS (APPS)

POM^®-100B

HIGH PURITY WELDING APPLICATIONS

US & FOREIGN PATENTS PENDING

BREAKTHROUGH BLUETOOTH TECHNOLOGY FOR REMOTE LOGGING FROM ANDROID, iOS AND WINDOWS APPLICATIONS (APPS)

About

REQUEST A QUOTE

About

Aquasol has developed the first APP enabled handheld oxygen monitor for the welding industry. Compatible with Android, iOS and Windows; the patent-pending POM^®-100B joins other well-known innovative brands in bringing the latest technology to welders’ fingertips. The APP allows users to monitor oxygen levels within a range of 100 feet (30 M) from the actual oxygen monitor with Bluetooth transmitting capabilities. Real-time monitoring improves the quality control process and improves productivity.

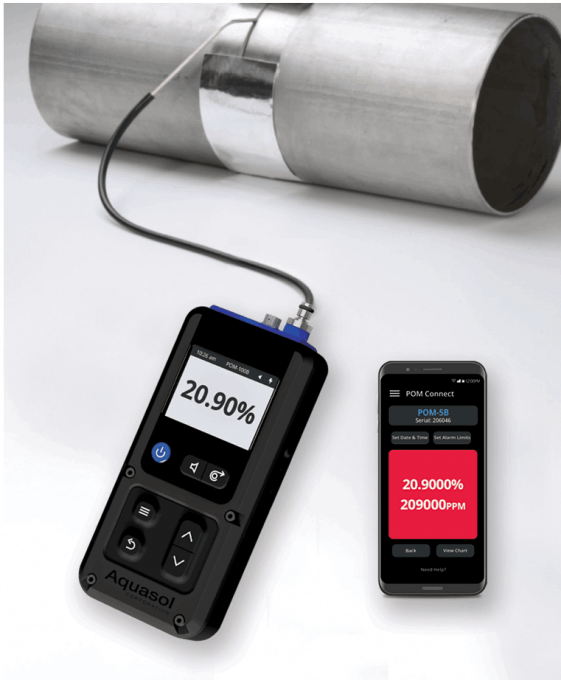

Simply said, the Aquasol POM^®-100B is a battery-powered, Bluetooth transmitting, rechargeable, handheld digital oxygen monitor with an internal pump that accurately measures oxygen concentration with 0.01% (100 PPM) resolution. Oxygen is displaced by the purge gas to a pre-determined level set by the operator. Evacuation of oxygen is paramount in high purity welding to prevent oxidation, discoloration, and coking.

The POM^®-100B comes equipped with many advanced features such as its data logging capabilities, which allow operators to create infinite permanent records of real time data and export to Microsoft^® Excel and plain text format.

The POM^®-100B also offers a built-in, programmable multi-language feature with on-screen instructions that are available in English, Spanish, German, Portuguese and Japanese. Together with different voltage and frequency specifications and compatibilities, the POM^®-100B is the most universal oxygen weld monitor available on the global market today.

With its long battery life and fast charging capabilities, operators get the most power in the least possible time. That, coupled with dust and water proof construction means it can withstand unusual and severe environmental conditions without interfering with operation of the equipment.

With so many advanced features, the POM^®-100B is easily the most technologically advanced weld purge monitor on the market while always giving the most accurate measurement.

Features and Benefits

REQUEST A QUOTE

Features and Benefits

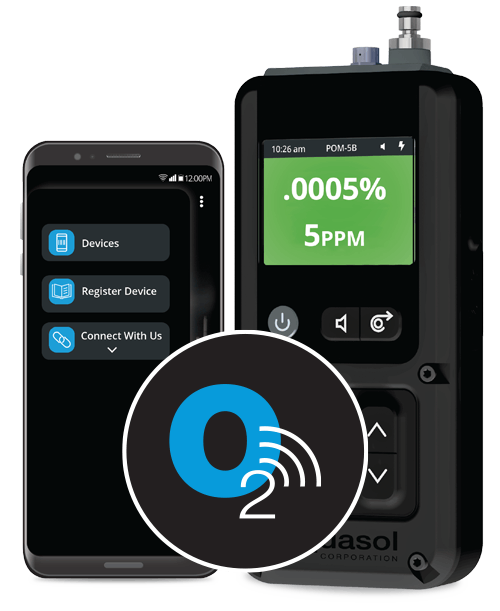

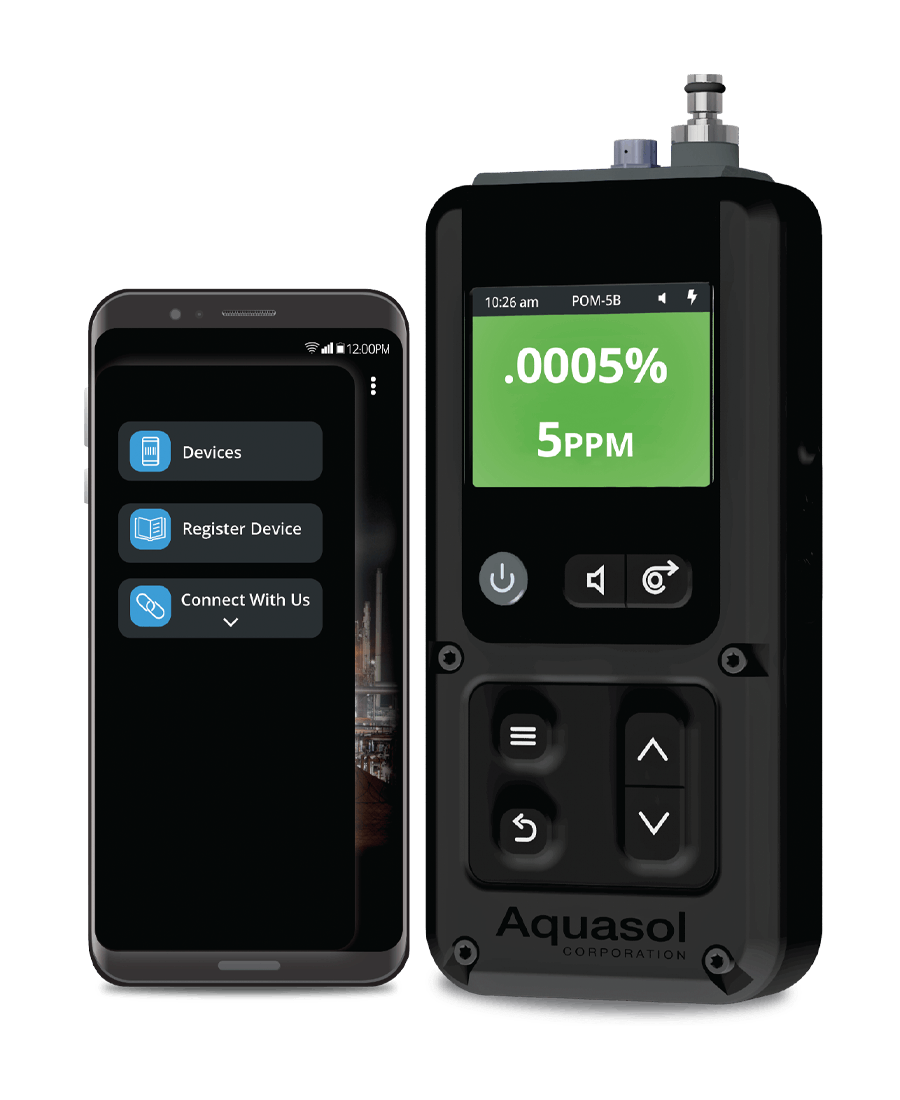

Bluetooth APP Enabled Operation

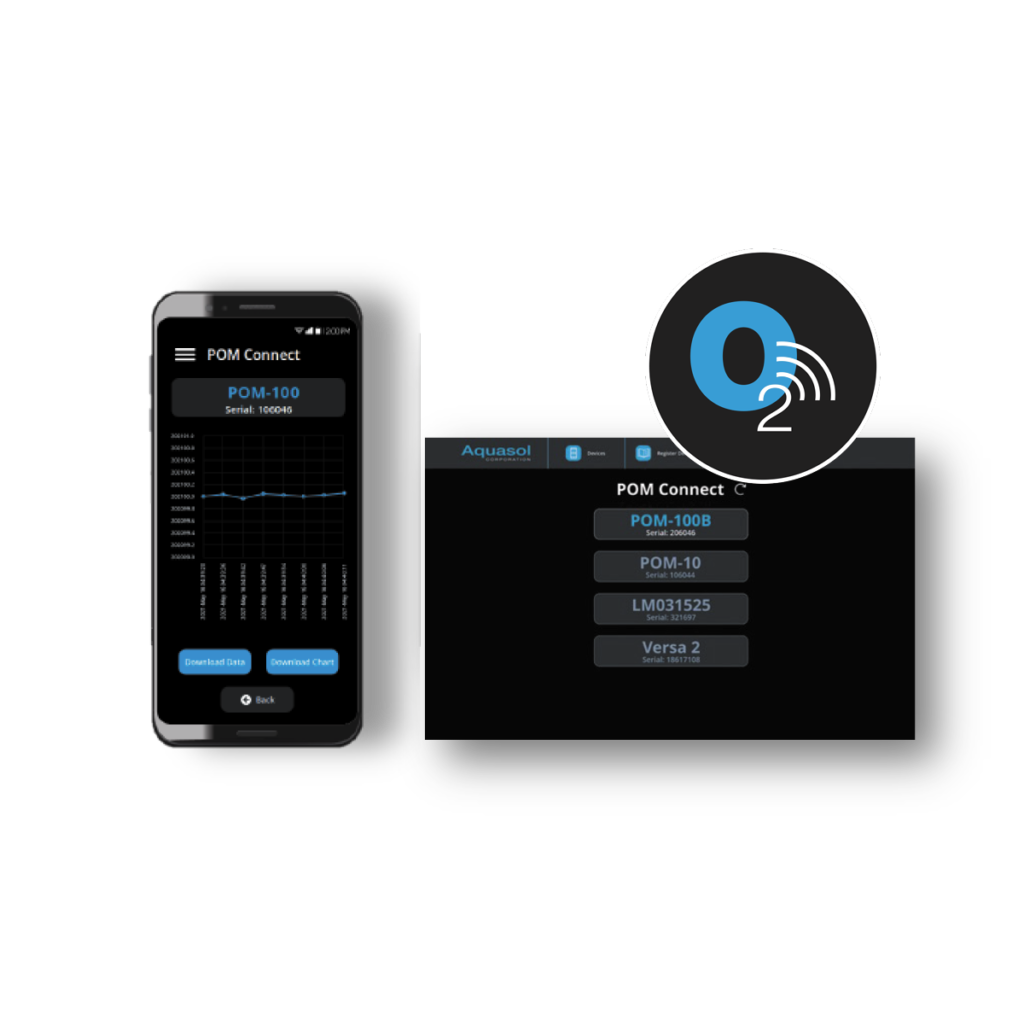

Real-time Operation via Android, iOS and Windows App
The POM^®-100B is equipped with a BLE transmitting device which allows the oxygen monitor to send the oxygen readings wirelessly to any BLE device (i.e. Smartphone/Laptop).

Note

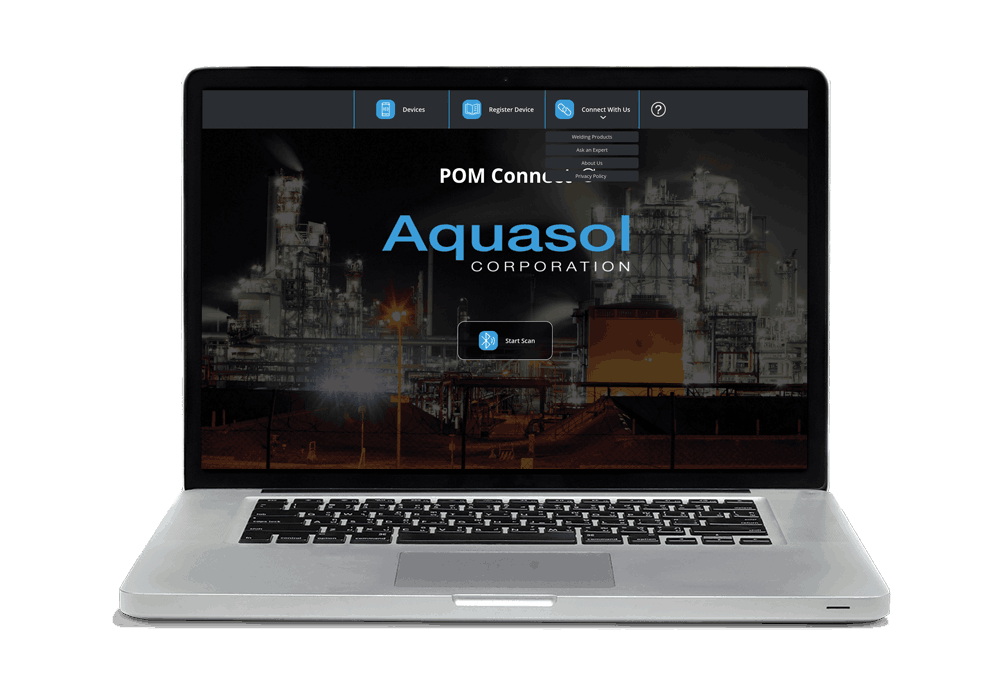

Compatible with companion Apps available on Android, iOS and Windows
Device MUST be equipped with BLE or purchased separately
To save unlimited readings, POM^®-100B MUST be connected to device

Unlimited Data Logging Capabilities in Real Time

With POM^®-100B you will be able to create unlimited real time records of oxygen levels for critical welding applications

The main view contains current oxygen readings with clearly visible Intelligent Color Notification System
Access the offline logs stored on the unit, connect the unit to the computer using the provided USB printer cable
The unit will store a log of every data point in a CSV (comma-separated value) file with a default name of MM-DD-YY.csv

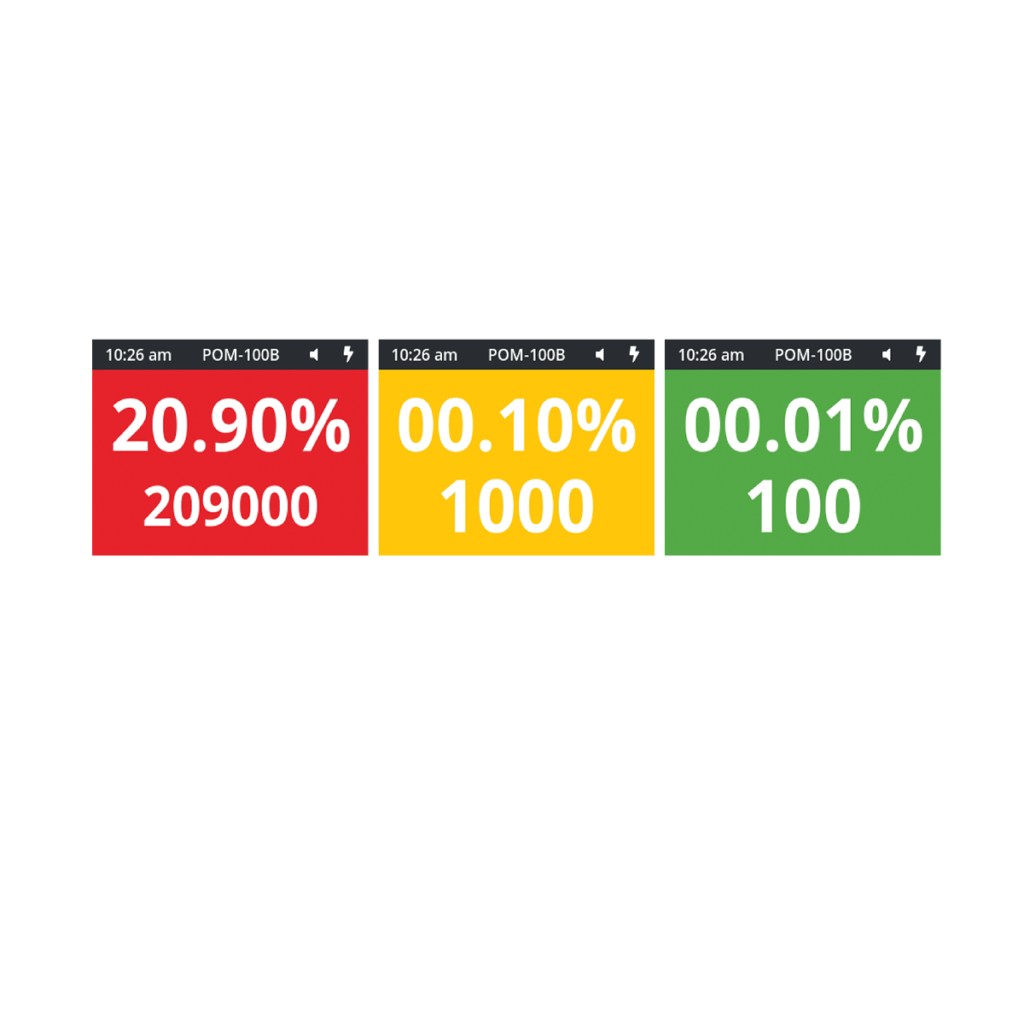

Intelligent Color Notification System

This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error.
Eliminate guesswork as Alarms can be set to desired O₂ PPM value.
Acceptable oxygen levels can be customized to the user specifications.

Factory Calibrated and Certified

The POM^®-100B Oxygen Monitor is factory calibrated and certified, accompanied by a dated certificate of authentication
Meets requirements specified by the National Institute of Standards and Technology

2 Point Calibration Model:

Calibrates using ambient air and 99.999% Argon.

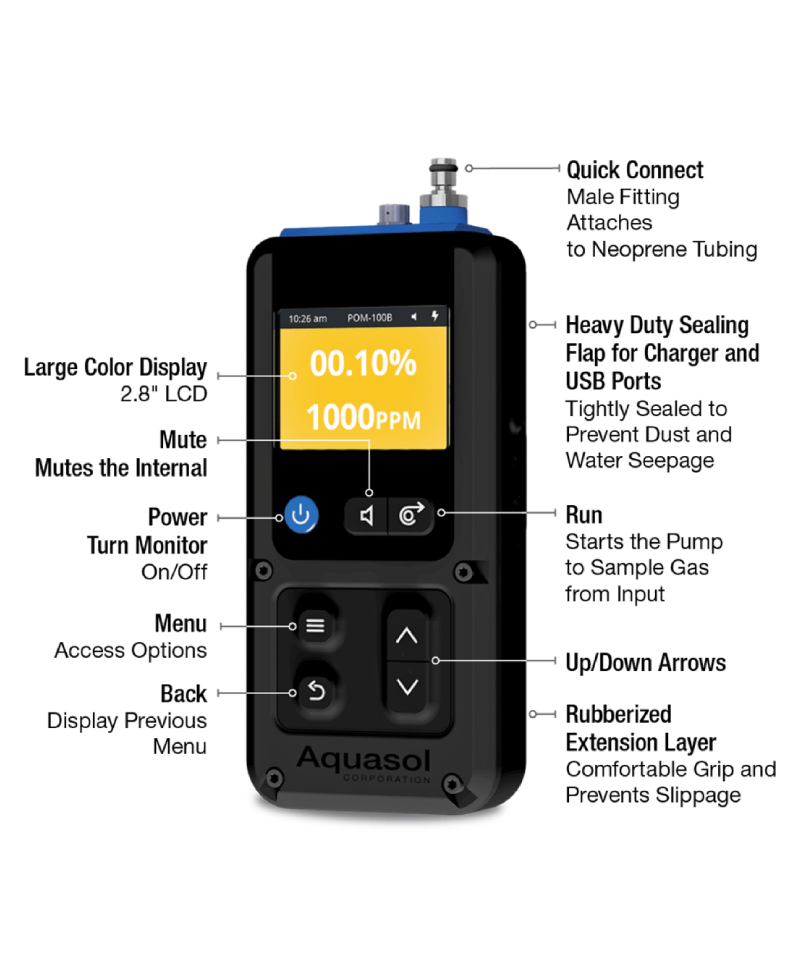

How POM^®- 100B Works

Set Up Unit:

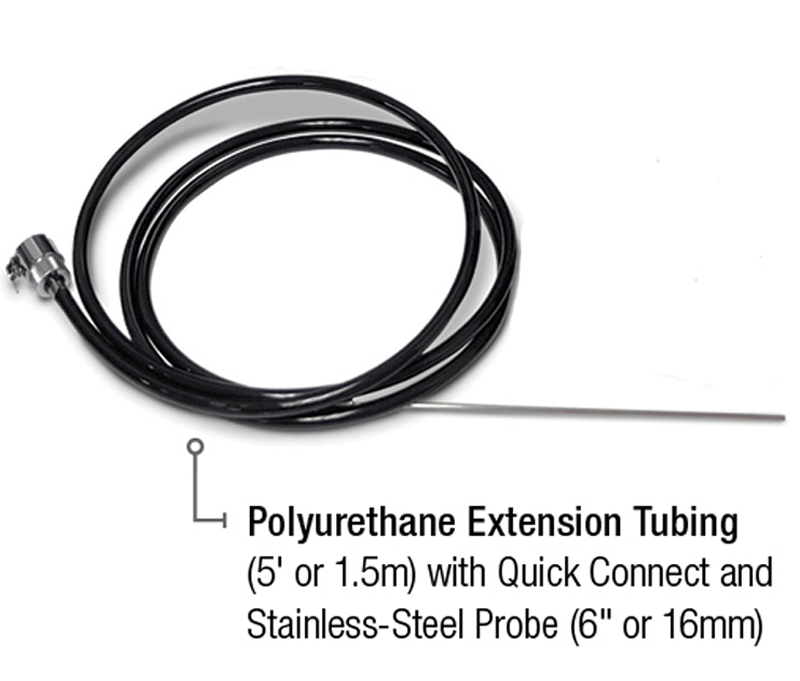

Attach the Polyurethane Extension Tubing with Female Quick Connect Fitting to the Male Quick Connect Fitting on the top of POM^®-100B
Pull gently to ensure the connection is securely in place
The tubing can easily be removed with the push of a button, no tools are necessary

Connecting to Bluetooth

Open App Store (iPhone App Store for iPhone, Google Play App Store for Android, Microsoft Store for Windows) on your Smartphone/Laptop
Search for “POM CONNECT” App by Aquasol Corporation
Install the “POM CONNECT” App

To Set Language:

Press the “MENU/ENTER” Button
Select “Languages” and press the “MENU/ENTER” button
Using the “UP/DOWN” arrow buttons, scroll and choose the desired language (English, German, Spanish, Portuguese and Japanese)
Once the language is highlighted, press the “MENU/ENTER” button

There are two (2) ways to set the Date and Time: Automatic and Manually

To Set Date and Time Automatic:

You can use any one of the BLE Apps to set the Date and Time. (Refer to your manual section 3.10.5. Update Date and Time Through App)

To Set Date and Time Manually:

Clicking on “Set Date & Time” sets the POM^®-100B unit to the current date and time on your Smart Phone/Laptop

Press the “MENU/ENTER” button
Using the “UP/DOWN” arrow buttons, select “DATE & TIME” and press the “MENU/ENTER” button
Select Month, Day, and Year using the “UP/ DOWN” arrow buttons and pressing “MENU/ ENTER” button after each selection. Repeat for time settings
Once the DATE & TIME are set, press the “BACK” button to return to the “MAIN MENU”

To Set Alarm ON/OFF:

Set Alarm Limits

Press the “MENU/ENTER” button
Using the “UP/DOWN” arrow buttons, select “Set Alarm Limits”. Press the “MENU/ENTER” button
The Alarm Limits are used for the Intelligent Color Notification System
Press the “MENU/ENTER” button to confirm the limit values
Press the “BACK” button to return to the “MAIN MENU”
Red indicates that the current measurement is greater than the “Upper Alarm Limit”
Yellow indicates that the current measurement is between the “Upper Alarm Limit” and “Lower Alarm Limit”
Green indicates that the current measurement is lower than the “Lower Alarm Limit”

Factory Calibrated and Certified

The POM^®-100B Oxygen Monitors is factory calibrated and certified, accompanied by a dated certificate of authentication
Meets requirements specified by the National Institute of Standards and Technology
2 Point Calibration: Calibrates using ambient air and 99.999% Argon

Intelligent Color Notification System

Operator sets “Upper Alarm Limit” and “Lower Alarm Limit” for a quick visual check on current oxygen level
RED Indicates current measurement is greater than the “Upper Alarm Limit”
YELLOW Indicates current measurement is between the “Upper Alarm Limit” & “Lower Alarm Limit”
GREEN Indicates current measurement is lower than the “Lower Alarm Limit”

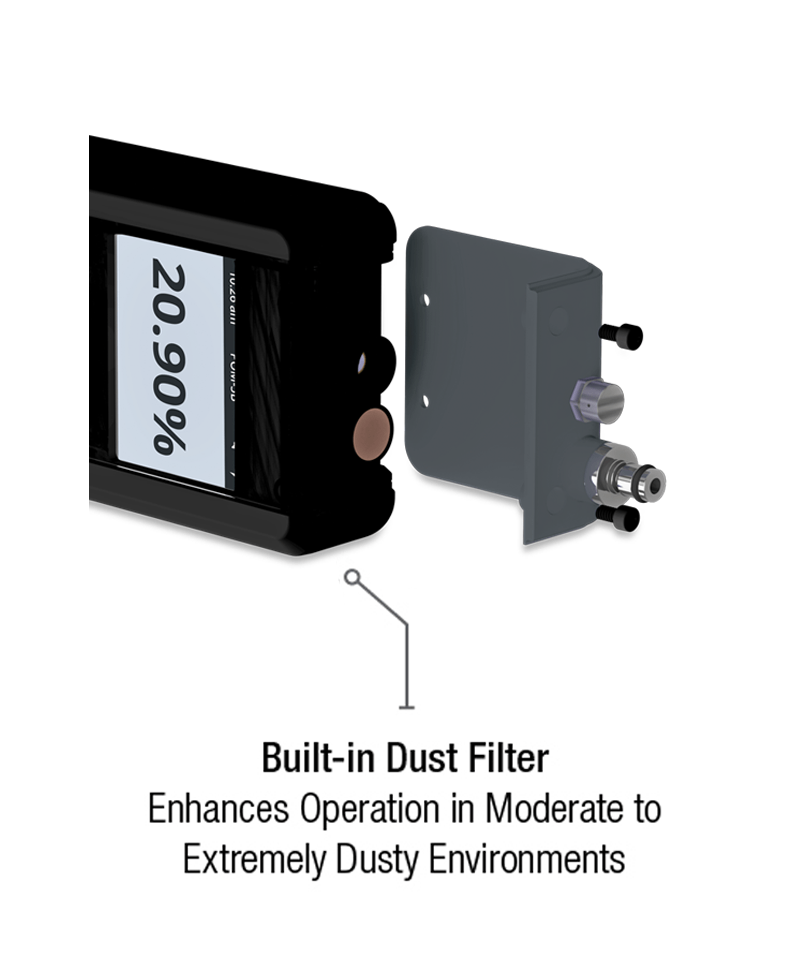

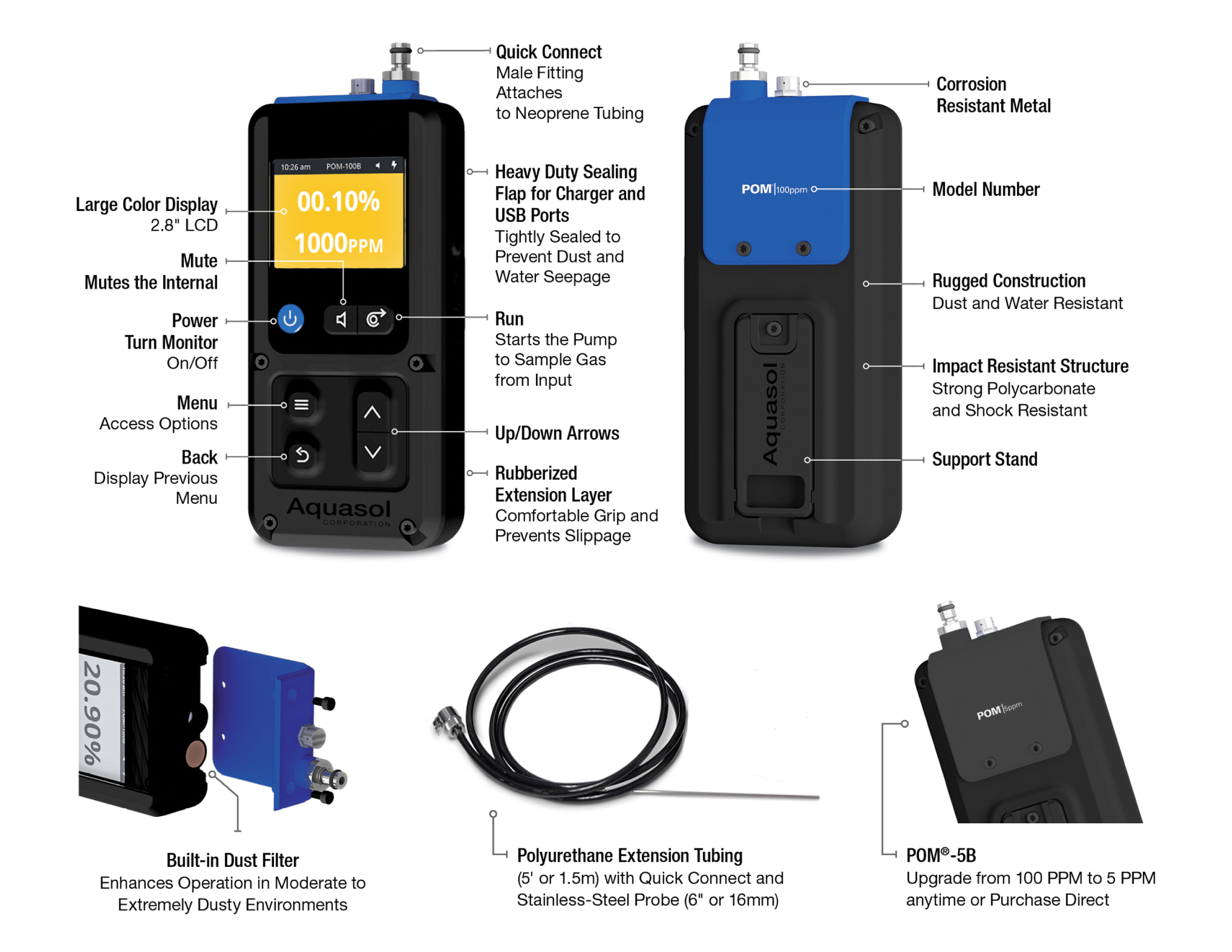

Built-in Dust Filter

To ensure the long-term operation of the POM^®-100B, it is equipped with a built-in dust filter to capture dust and debris.

The sintered bronze Dust Filter sits in the input port inside the device
The Dust Filter can be cleaned if exposed to extremely dusty environments as well as replaced

POM^® Registration

It is important to Register the POM^®-100B to start warranty services. It’s quick and the link is conveniently located in the menu options of the POM device or the POM® Connect App.

Additionally, visit www.aquasolwelding.com/pom-registration

CE Designation

The POM^®-100B is in compliance with CE Directives

Set Up Unit:

Attach the Polyurethane Extension Tubing with Female Quick Connect Fitting to the Male Quick Connect Fitting on the top of POM^®-100B
Pull gently to ensure the connection is securely in place
The tubing can easily be removed with the push of a button, no tools are necessary

Connecting to Bluetooth

Open App Store (iPhone App Store for iPhone, Google Play App Store for Android, Microsoft Store for Windows) on your Smartphone/Laptop
Search for “POM CONNECT” App by Aquasol Corporation
Install the “POM CONNECT” App

To Set Language:

Press the “MENU/ENTER” Button
Select “Languages” and press the “MENU/ENTER” button
Using the “UP/DOWN” arrow buttons, scroll and choose the desired language (English, German, Spanish, Portuguese and Japanese)
Once the language is highlighted, press the “MENU/ENTER” button

There are two (2) ways to set the Date and Time: Automatic and Manually

To Set Date and Time Automatic:

You can use any one of the BLE Apps to set the Date and Time. (Refer to your manual section 3.10.5. Update Date and Time Through App)

To Set Date and Time Manually:

Clicking on “Set Date & Time” sets the POM^®-100B unit to the current date and time on your Smart Phone/Laptop

Press the “MENU/ENTER” button
Using the “UP/DOWN” arrow buttons, select “DATE & TIME” and press the “MENU/ENTER” button
Select Month, Day, and Year using the “UP/ DOWN” arrow buttons and pressing “MENU/ ENTER” button after each selection. Repeat for time settings
Once the DATE & TIME are set, press the “BACK” button to return to the “MAIN MENU”

To Set Alarm ON/OFF:

Set Alarm Limits

Press the “MENU/ENTER” button
Using the “UP/DOWN” arrow buttons, select “Set Alarm Limits”. Press the “MENU/ENTER” button
The Alarm Limits are used for the Intelligent Color Notification System
Press the “MENU/ENTER” button to confirm the limit values
Press the “BACK” button to return to the “MAIN MENU”
Red indicates that the current measurement is greater than the “Upper Alarm Limit”
Yellow indicates that the current measurement is between the “Upper Alarm Limit” and “Lower Alarm Limit”
Green indicates that the current measurement is lower than the “Lower Alarm Limit”

Factory Calibrated and Certified

The POM^®-100B Oxygen Monitors is factory calibrated and certified, accompanied by a dated certificate of authentication
Meets requirements specified by the National Institute of Standards and Technology
2 Point Calibration: Calibrates using ambient air and 99.999% Argon

Intelligent Color Notification System

Operator sets “Upper Alarm Limit” and “Lower Alarm Limit” for a quick visual check on current oxygen level
RED Indicates current measurement is greater than the “Upper Alarm Limit”
YELLOW Indicates current measurement is between the “Upper Alarm Limit” & “Lower Alarm Limit”
GREEN Indicates current measurement is lower than the “Lower Alarm Limit”

Built-in Dust Filter

To ensure the long-term operation of the POM^®-100B, it is equipped with a built-in dust filter to capture dust and debris.

The sintered bronze Dust Filter sits in the input port inside the device
The Dust Filter can be cleaned if exposed to extremely dusty environments as well as replaced

POM^® Registration

It is important to Register the POM^®-100B to start warranty services. It’s quick and the link is conveniently located in the menu options of the POM device or the POM® Connect App.

Additionally, visit www.aquasolwelding.com/pom-registration

CE Designation

The POM^®-100B is in compliance with CE Directives

Types & Sizes

REQUEST A QUOTE

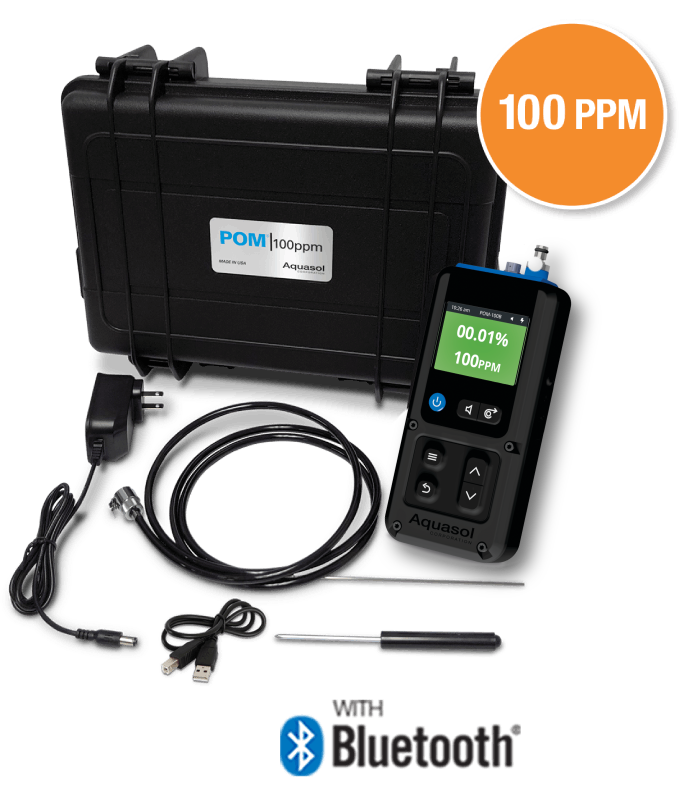

POM^®-100B / POM^®-5B KIT TYPES AND SIZES

Item No	Description	Dimensions		Weight
Item No	Description			English (IN)	Metric (MM)	English	Metric

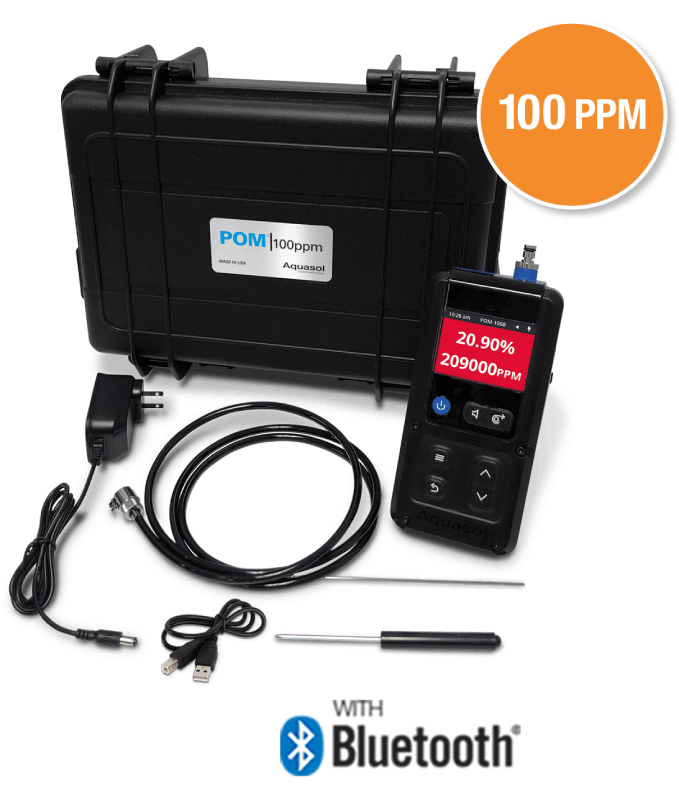

POM 100B KIT	POM-100B Oxygen Monitor & Accessories with US Charger	15 x 11 x 5	38 x 28x 13	6.00 lb	2722 g
POM 100B KIT EURO	POM-100B Oxygen Monitor & Accessories with European Charger	15 x 11 x 5	38 x 28 x 13	6.00 lb	2722 g
POM 5B KIT	POM-5B Oxygen Monitor & Accessories with US Charger	15 x 11 x 5	38 x 28 x 13	6 lb	2722 g
POM 5B KIT EURO	POM-5B Oxygen Monitor & Accessories with European Charger	15 x 11 x 5	38 x 28 x 13	6 lb	2722 g
POM-Charger US	POM-100B/POM-5B US Power Supply/Charger	8 x 4 x 4	20 x 10 x 10	0.40 lb	181 g
POM-Charger/EU	POM-100B/POM-5B European Power Supply/Charger	8 x 4 x 4	20 x 10 x 10	0.4 lb	181 g
POM-Tube Assembly	POM-100B/POM-5B Polyurethane Extension Tubing (5′ or 1.5m) with Quick Connect and Stainless-Steel Probe (6″ or 16mm)	8 x 8 x 9	20 x 20 x 23	0.65 lb	295 g

Watch Video

REQUEST A QUOTE

Video Playlist

1/12 videos

POM-100B/POM-5B: Setting up the POM Device
