جهاز رقمي قابل للبرمجة لمراقبة الأكسجين
براءات اختراع أمريكية وأجنبية ممنوحة |
صنع في الولايات المتحدة الأمريكية
مراقبة دقيقة لمستويات الأكسجين بميزات متقدمة قابلة للبرمجة وإمكانات لتسجيل البيانات، مع قياسات تصل إلى 0.01% (100 ppm)، لتطبيقات اللحام وتطهير الأنابيب بغاز الحماية التي تتطلب دقة عالية.
إن جهاز مراقبة الأكسجين المحمول باليد والقابل للبرمجة طراز Pro OX-100 من شركة أكواسول مُصمم لتقديم أدق قراءات ممكنة لمستوى الأكسحين للمشغلين.
ويقوم جهاز مراقبة لحام الأكسجين للمُعايرة الذاتية المزود بمضخة داخلية والمشهور دوليًا لمزاياه المتقدمة بدرجة كبيرة وتكلفته المنخفضة بالقياس بدقة بمعدل تمايز قدره 0.01% (100 جزء في المليون) وهو مثالي لاستخدامات التطهير وغير ذلك من الاستخدامات الأخرى.
يأتي جهاز Pro OX-100 مزودًا بالعديد من المزايا المتقدمة مثل قدراته على تسجيل البيانات التي تتيح عمال اللحام إنشاء سجلات دائمة للبيانات الحقيقية (على فترات زمنية تبلغ 15 ثانية) وتصدير ما يصل إلى 50 نقطة بيانات إلى ملف Microsoft® Excel وتنسيق نص عادي.
كما يقدم الجهاز أيضًا ميزة اللغات المتعددة المدمجة والقابلة للبرمجة يصاحبها تعليمات فورية على الشاشة متوفرة باللغات الإنجليزية والإسبانية والألمانية والبرتغالية. وإلى جانب مواصفات وتوافقيات فولطية وتردد مختلفة، يُعد جهاز Pro OX-100 من أكثر أجهزة مراقبة لحام الأكسجين الشاملة توفرًا في السوق العالمي اليوم.
تتم معايرة جميع أجهزة مراقبة الأكسجين PRO OX-100 المُباعة قبل 1 أغسطس 2019 عبر «المعايرة الذاتية». وتستخدم هذه الطريقة الهواء المُحيط فقط للمعايرة.
تتم معايرة جميع الأجهزة المُباعة بعد 1 أغسطس 2019 عبر «المعايرة ثنائية النقطة». وتستخدم هذه الطريقة نقطة عالية (الهواء المُحيط) ونقطة منخفضة (أرجون بنقاء 99.999%) للمعايرة.
قدرات على تسجيل البيانات
3. من الطبيعي أن يظهر جهاز PRO-OX 100 كلوحة مفاتيح في صفحة «الأجهزة والطابعات»
4. افتح ملف Notepad فارغًا وضع المؤشر داخل الملف
5. انتقل إلى خيار «PC Mode» واضغط على «ENTER» وانتظر حتى تطبع الوحدة قيم السجل في ملف Notepad
معايرة واعتماد المصنع
2 نموذج معايرة نقطتين:
إنذار سمعي بصري
بطارية 9 فولت قابلة لإعادة الشحن وشاحن مُصمم للفولطية العالمية
تصنيف الاتحاد الأوروبي
اللغات
قابل للبرمجة بأربع لغات واسعة الانتشار لتلبية احتياجات العملاء الدوليين
تركيب أنابيب التمديد من النيوبرين:
لضبط اللغات:
لضبط التاريخ والوقت:
لتشغيل/إيقاف الإنذار:
ملاحظة: الإنذار السمعي البصري مضبوط من المصنع على “الإنذار معطل”
لعرض السجل:
لمسح السجل:
معايرة جهاز PRO OX-100:
طراز المعايرة ثنائية النقطة:
وضع القراءة المُركزة:
وضع القراءة المتواصلة:
| رقم البند | الوصف | الأبعاد | الوزن | ||
|---|---|---|---|---|---|
| الحجم الإنجليزي (بوصة) | الحجم المتري (مم) | الحجم الإنجليزي | الحجم المتري | ||
| P-OX KIT | جهاز مراقبة الأكسجين من طراز PRO OX-100 ومجموعة ملحقات | 11 x 9 x 4 | 279 x 227 x 102 | 4.00 lb | 182 g |
| P-OX KIT Euro | جهاز مراقبة الأكسجين من طراز PRO OX-100 ومجموعة ملحقات مزود بها شاحن أوروبي | 11 x 9 x 4 | 279 x 227 x 102 | 4.00 lb | 182 g |
| P-OX Sensor | مستشعر أكسجين PRO OX-100 | 1 x 1 | 21 x 20 | 0.03 lb | 16 g |
| P-OX Batt | بطارية هيدريد النيكل والمعدن 9 فولت PRO OX-100 | 2 x 1 x 1 | 48 x 26 x 17 | 0.12 lb | 54 g |
| P-OX Charger/US | شاحن بطارية هيدريد النيكل والمعدن بجهد 12 فولت PRO OX-100 مزود بقابس أمريكي النوع | 3 x 2 x 1 | 8 x 60 x 25 | 0.10 lb | 59 g |
| P-OX Charger/EU | شاحن بطارية هيدريد النيكل والمعدن 12 فولت PRO OX-100 مزود بقابس أوروبي النوع | 3 x 2 x 1 | 8 x 60 x 25 | 0.10 lb | 59 g |
| P-OX USB | كبل USB لجهاز PRO OX-100 (72 بوصة أو 1.8 م) | 4 x 4 x 1 | 102 x 102 x 25 | 0.11 lb | 50 g |
Every oxygen monitor is shipped with a Calibration Certificate.
The Pro OX-100 is battery operated, but can also be operated through a standalone power supply. For specifications on use, refer to section 2.1.1 of the manual. With a full-charge, the battery can supply continuous power for up to two (2) hours.
The PRO OX-100 can operate in temperatures as low as 0°C (32°F) and as high as 50°C (122°F).
The sensor has a lifespan of approximately one year under normal operating conditions (see manual for operating temperature, proper storage guidelines, etc.).
Sensors are available for purchase. Each sensor has a one-year warranty. It is not recommended to keep stock of extra sensors. Sensors are readily available to ship and are lightweight. Contact orderdesk@aquasolcorporation.com for further information
If there is an issue starting the pump when pressing the SPOT or CONT button, the pump may be damaged. Contact customer service for an RGA authorization.
If there is no display when the toggle switch is in the ON position, either the battery is drained or the LCD is damaged.
If the battery is drained, simply recharge the battery or use the standalone power supply. Refer to section 1.2.2B of the PRO OX-100 manual for instructions.
If the screen does not light up, replace the battery.
If the LCD is damaged, the unit must be sent to Aquasol Corporation for repair. Contact customer service for an RGA authorization.
If strange symbols appear on the screen when the toggle switch is in the ON position, the display is damaged.
The unit must be repaired. Contact customer service for an RGA authorization.
The keypad is damaged if the keys do not correspond with what is on the display. The unit must be sent to Aquasol Corporation for repair. Contact customer service for an RGA authorization.
To test the PRO OX-100 audiovisual alarm, follow the guidelines below:
If user is unable to set the alarm, the program could be corrupted. Contact customer service for an RGA authorization.
If the alarm does not sound or flash, the alarm is either disabled or damaged. In order to fix this, refer to the manual Section 2.1.3. and follow the instructions. If the issue still persists, the unit must be sent to Aquasol Corporation for repair. Contact customer service for an RGA authorization.
Self Calibrating Model:

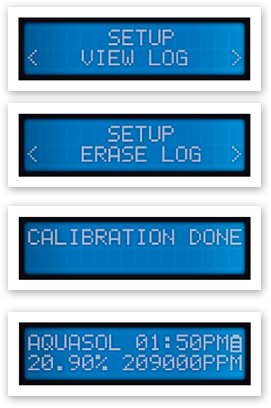

Ensure the sensor is plugged into the sockets properly. After running for 30 seconds, if calibration is successful, the screen will display “CALIBRATION DONE”.
Self Calibrating & 2 Point Calibration Models:
If CAL ERR is displayed, sensor must be replaced. Call Aquasol customer service.
High-frequency may be an issue with monitors receiving readings around specific welding machines. To test for this, place a piece of metal foil/sheet metal between the monitor and the machine, to protect it from interfering with the circuit board. If the monitor reading is normal, high-frequency equipment is interfering.
Any new 9V rechargeable battery can be substituted in the PRO-OX 100. The specification for the 9V battery is NiMH 280mAh. Additionally, any ordinary (non-chargeable) battery may be used as well.
The PRO OX-100 logs data that can be transferred to a computer via USB cable. Conversion software enables easy capture and export of 50 data points to Microsoft® Excel and Plain text format. Data is recorded in 15 second intervals in CONTINUOUS mode or as needed in SPOT mode.
In order to obtain the data logging software required for the Pro OX®-100, go to aquasolwelding.com, click on the products drop down menu and select “PRO OX-100”. Then click on the provided link, Download “Software and Driver” zip file, complete the form including unit serial number and other required information. Within 24 hours you will receive an email with software attachments for 32 and 64 bit machines.
Self Calibrating Model:
Calibration can be performed on a weekly basis. There are no other specific recommendations regarding maintenance besides general care of the unit such as cleaning, proper storage, etc.
Point Calibration Model:
1. As the unit undergoes 2 point calibration, it is not necessary to recalibrate unless the SENSOR needs replacement. A CAL ERR will indicate a need for replacement.
2. Replace sensor and follow instructions in section 2.1.7 of the manual pages 19-21.
Self Calibrating Model:
If a unit is used very frequently (daily) it should be calibrated once a week. If it is not used frequently, it should be calibrated once every three weeks.
2 Point Calibration Model:
As the unit undergoes 2 point calibration, it is not necessary to recalibrate unless the SENSOR needs replacement. A CAL ERR will indicate a need for replacement.
Every oxygen monitor is shipped with a Calibration Certificate.
The Pro OX-100 is battery operated, but can also be operated through a standalone power supply. For specifications on use, refer to section 2.1.1 of the manual. With a full-charge, the battery can supply continuous power for up to two (2) hours.
When using The Pro OX-100 Oxygen Monitor for LESS than two (2) continuous hours, ensure a fully charged battery is installed into the battery housing. Then turn the power switch to the ON position. Continue to use the monitor until operation is complete or the battery indicator displays the “low battery indicator”.
When using The Pro OX®-100 Oxygen Monitor for MORE than two (2) continuous hours be sure to turn the power switch to the OFF position. If the battery is installed, remove it from the housing. Then connect the standalone power supply/charger cable to the port. After this step, connect the power supply/charger plug into the nearest working outlet (110V for US type/220V for EU type). Then simply turn the power switch to the ON position. The Pro OX-100 is capable of operating indefinitely with a standalone power supply.
CAUTION: ALWAYS REMOVE THE BATTERY IF USING THE MONITOR FOR MORE THAN 2 CONTINUOUS HOURS. FAILURE TO DO SO CAN OVERHEAT THE BATTERY AND SERIOUSLY DAMAGE THE PRODUCT AS WELL AS VOID THE WARRANTY.
The PRO OX-100 can operate in temperatures as low as 0°C (32°F) and as high as 50°C (122°F).
The sensor has a lifespan of approximately one year under normal operating conditions (see manual for operating temperature, proper storage guidelines, etc.).
Sensors are available for purchase. Each sensor has a one-year warranty. It is not recommended to keep stock of extra sensors. Sensors are readily available to ship and are lightweight.
If there is an issue starting the pump when pressing the SPOT or CONT button, the pump may be damaged. Contact customer service for an RGA authorization.
If there is no display when the toggle switch is in the ON position, either the battery is drained or the LCD is damaged.
If the battery is drained, simply recharge the battery or use the standalone power supply. Refer to section 1.2.2B of the PRO OX-100 manual for instructions.
If the screen does not light up, replace the battery.
If the LCD is damaged, the unit must be sent to Aquasol Corporation for repair. Contact customer service for an RGA authorization.
If strange symbols appear on the screen when the toggle switch is in the ON position, the display is damaged.
The unit must be repaired. Contact customer service for an RGA authorization.
The keypad is damaged if the keys do not correspond with what is on the display. The unit must be sent to Aquasol Corporation for repair. Contact customer service for an RGA authorization.
To test the PRO OX-100 audiovisual alarm, follow the guidelines below:
If user is unable to set the alarm, the program could be corrupted. Contact customer service for an RGA authorization.
