صنع في الولايات المتحدة
يتميز جهاز مراقبة الأكسجين PRO OX-100B الأكثر تقدمًا والمُعتمد من الاتحاد الأوروبي، بكونه لا يقيس فقط محتوى الأكسجين حتى 100 جزء في المليون (0.01٪) أثناء عملية التطهير، بل إنه مُجهز بوحدة إرسال عبر تقنية Bluetooth والتي تسمح لجهاز مراقبة الأكسجين بإرسال قراءات الأكسجين لاسلكيًا إلى أي جهاز مزود بتقنية Bluetooth، بحيث يُمكن للمُشغلين استعراض القراءات من أي موقع عن بُعد.
وينتقل الفخر والاعتزاز إلى تصنيع جهاز PRO OX-100B في الولايات المتحدة الأمريكية بمصنع شركة أكواسول الحاصل على اعتماد الأيزو.
إن جهاز مراقبة الأكسجين الرقمي PRO OX-100B القابل للبرمجة والداعم لتقنية Bluetooth مصمم بأحدث التقنيات – قيد التسجيل كبراءة اختراع – والتي تُمكن المشغلين من تسجيل كميات غير محدودة من البيانات عن بُعد. يُمكن للمستخدمين إجراء اقتران للجهاز ببساطة باستخدام التطبيق/البرنامج واستخدام خيارات القائمة على الشاشة. يسمح ذلك للمستخدمين بالوصول إلى واجهة البيانات عند وجودهم على مسافة تبعد 100 قدم (30 مترًا) ومراقبة تسجيلات البيانات في الوقت الفعلي.
يعرض نظام التنبيه الذكي بالإشارات المُلونة اللون الأحمر، والأصفر، والأخضر وذلك لتمكين المُشغلين من استعراض معايير الضبط بسرعة. وسيتمكن المشغلون من الوصول إلى تطبيق سهل الاستخدام والذي سيتتبع كمية غير محدودة من نقاط البيانات. ويُمكن بعد ذلك تخزين البيانات التي يتم جمعها من جهاز مراقبة الأكسجين لفترة غير محددة لتلبية متطلبات مراقبة الجودة الصارمة للصناعات النووية وغيرها من الصناعات الخاضعة لرقابة شديدة.
The most advanced and CE approved oxygen monitoring device, the PRO OX-100B not only measures oxygen content down to 100 PPM (0.01%) during the purging process, but is equipped with a Bluetooth transmitting device that allows the oxygen monitor to send the oxygen readings wirelessly to a Bluetooth receivable device, operators may view the readings from a remote location. Great pride goes into manufacturing the PRO OX-100B in Aquasol Corporation’s ISO Certified Factory in the USA.
Bluetooth Transmitting Capabilities
• Real Time Recording of UNLIMITED Data

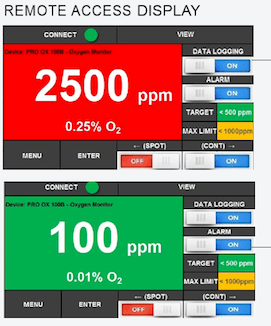

• The PRO OX-100B comes equipped with a Bluetooth transmitting device that allows the oxygen monitor to send the oxygen readings wirelessly to a Bluetooth receivable device with a Windows 10 operating system, allowing the operator to view the readings from a remote location. This permits users with the ability to access the data interface while standing up to 100 feet (30 meters) away.
Unlimited Data Logging Capabilities in Real Time
• With the PRO OX-100B you will be able to create permanent records of UNLIMITED real time data (at 7 second intervals) of oxygen levels for critical welding operations.
Intelligent Color Notification System
• This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error.
• Eliminate guesswork as Alarms can be set to desired O2 PPM value
• Acceptable oxygen levels can be customized to the user specifications.
إمكانيات الإرسال عبر تقنية Bluetooth
إمكانيات تسجيل بيانات غير محدودة في الوقت الفعلي
نظام التنبيه الذكي بالإشارات المُلونة
SPOT (مركز):
مُصمم للفولطية العالمية
مُعاير ذاتيًا ومُعتمد
تصنيف الاتحاد الأوروبي
اللغات
قابل للبرمجة بأربع لغات واسعة الانتشار لتلبية احتياجات العملاء الدوليين
Programmable in four popular languages to satisfy international customer needs
Note:
تثبيت البرنامج:
الاقتران الأوليّ لجهازك:
إعادة اقتران جهازك:
تركيب أنبوب التمديد من النيوبرين:
لضبط اللغة:
لضبط التاريخ والوقت:
Self-Calibrating Model:
Installing the Neoprene Extension Tubing:
1. Attach neoprene extension tubing with female fitting to the Quick Connect “male” fitting on the top right side of the unit
2. Pull gently to ensure the connection is securely in place
3. Insert the stainless steel probe to the end of the neoprene tube without a fitting
4. Before taking an oxygen measurement, ascertain both connections are tightly secured

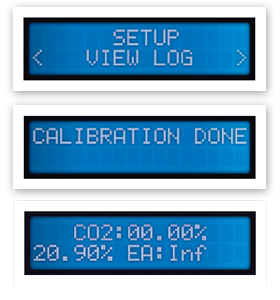

To Set Language:
1. Press and hold the “MENU” button
2. Next press the “RIGHT” → button until you see “SETUP: LANGUAGE” displayed
3. Press the “ENTER” button to select language setup
4. Choose the preferred language (German, Spanish, Portuguese, English)
5. Press “ENTER” button to Save and Exit
6. Press “MENU” button to return to main screen
To Set Date and Time:
1. Press the “Menu” button to display the “SETUP” menu
2. Select the “SET DT/TM” option by pressing “ENTER”
3. Use the “RIGHT” → and “LEFT” ← arrow buttons to increase or decrease “HOUR”, “MINUTE”, “SECOND”, “MONTH”, and “YEAR” value, using the “ENTER” button to save settings
رقم البند | الوصف | الأبعاد | الوزن | ||
---|---|---|---|---|---|
الحجم الإنجليزي (بوصة) | الحجم المتري (مم) | الحجم الإنجليزي (بوصة) | الحجم المتري (مم) | ||
P-OX/B KIT | جهاز مراقبة الأكسجين من طراز PRO OX-100B ومجموعة ملحقات | 11 × 9 × 4 | 279 × 227 × 102 | 4.00 lb | 182 g |
P-OX/B KIT Euro | جهاز مراقبة الأكسجين من طراز PRO OX-100B ومجموعة ملحقات مزود بها شاحن أوروبي | 11 × 9 × 4 | 279 × 227 × 102 | 4.00 lb | 182 g |
P-OX Sensor | مستشعر أكسجين PRO OX-100B | 1 × 1 | 21 × 20 | 0.03 lb | 16 g |
P-OX Batt | بطارية هيدريد النيكل والمعدن 9 فولت PRO OX-100B | 2 × 1 × 1 | 48 × 26 × 17 | 0.12 lb | 54 g |
P-OX Charger/US | شاحن بطارية هيدريد النيكل والمعدن بجهد 12 فولت PRO OX-100B مزود بقابس أمريكي النوع | 3 × 2 × 1 | 8 × 60 × 25 | 0.10 lb | 59 g |
P-OX Charger/EU | شاحن بطارية هيدريد النيكل والمعدن 12 فولت PRO OX-100B مزود بقابس أوروبي النوع | 3 × 2 × 1 | 8 × 60 × 25 | 0.10 lb | 59 g |
P-OX USB | كبل USB لجهاز PRO OX-100B(72 34 بوصة أو 1.8 م) | 4 × 4 × 1 | 102 × 102 × 25 | 0.11 lb | 50 g |
