EZ Purge®

PRE-FORMED, SELF-ADHESIVE
WATER SOLUBLE PURGE DAMS

US & FOREIGN PATENTS ISSUED & PENDING

REVOLUTIONIZING
TIG PURGING

MADE IN THE USA
Print Friendly
Print Friendly






Image_0007_Layer-1



Patented and practical, EZ Purge is a pre-formed, self-adhesive purge dam that enables operators to save time on weld preparation and improve overall project timeliness. EZ Purge has tapered side walls to fit a variety of pipe schedules and its flat design enables equal distribution of gases across the body of the dam.

Uniquely engineered, EZ Purge comes equipped with EPA approved ZAP® (Zero Air Permeability) technology that maximizes gas retention and reduces gas expenditures. This water soluble purge dam is comprised of Aquasol® Water Soluble Paper and is 100% biodegradable and environmentally friendly. EZ Purge rapidly dissolves, leaving behind no residue in the pipeline.

EZ Purge saves valuable labor hours on dam construction and is easy to use. The operator simply peels, inserts, and presses the purge dam into place. No other product available on the market today can provide such a reliable, efficient, and environmentally sound solution to your pipe purging needs.

Print Friendly

Image_0006_ZAP-copyicon_0019_Layer-346(1)7(1)

Features and Benefits

Uniquely Engineered and Patented Design

  • ZAP (Zero Air Permeability) technology maximizes gas retention
  • Flat design enables equal distribution of gases across body of dam
  • Side walls tapered to fit different pipe schedules
  • Generous portion of water soluble tape pre-installed in sections for precise alignment




Cost Effective

  • Save precious labor hours on dam construction
    • Gathering Supplies
    • Measuring
    • Cutting
    • Constructing
    • Fitting
  • Improve project timeliness
  • Save on gas consumption
  • Reduce inventory expenditures


Ease of Removal

  • Made of Aquasol Water Soluble Paper (sodium carboxy methyl cellulose and wooden pulp)
  • Combined with other water soluble polymeric composites for added strength
  • 100% biodegradable and environmentally friendly
  • Dissolves rapidly leaving no residue in the pipeline


Print Friendly

How EZ Purge Works

Recommended Proximity to Weld Joint

* or distance recommended by Project Engineer

Pipe Size Recommended Distance
English Metric English Metric
2" – 8" 51 – 203 mm 6" 152 mm
10" – 22" 254 – 559 mm 8" 203 mm
24" – 36" 610 – 914 mm 12" 305 mm
40"+ 1 m+ 24" 610 mm




icon_0005_Layer-36icon_0000_Layer-42icon_0007_Layer-38icon_0001_Layer-43icon_0009_Layer-40icon_0002_Layer-44icon_0004_Layer-46icon_0003_Layer-45

icon_0012_Layer-49icon_0013_Layer-5018icon_0014_Layer-5120
Before beginning the purging process, clean inner walls of pipe

Peel
Peel liner off outer circumference of dam to fully expose adhesive, keeping it away from contaminants and debris




Insert
Align adhesive edges to the inside pipe wall and insert dam to desired location. (See Recommended Proximity to Weld Joint Chart)



Press
Thoroughly press adhesive on circumference of dam along inside of pipe wall to create even seal




Activate
Moisten an ordinary sponge with water, squeeze out excess water until sponge is damp. Lightly dab sponge along Aquasol Water Soluble Tape portion of dam. The dampened sponge will reactivate the adhesive to ensure zero air permeability.

For Sizes above 56” (1422 mm), inquire for directions.


Trouble Shooting

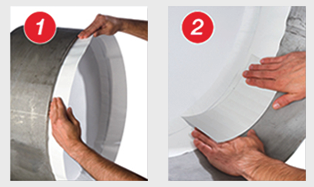

Repositioning
The dam surface should be perfectly perpendicular to the pipe wall. If the dam is not straight when placed in the pipe, it can be easily repositioned. To adjust without damaging the dam, carefully remove the tape portion of dam from the sidewall of the pipe. Move the dam to the desired location and apply additional Aquasol Water Soluble Tape for reinforcement, if required.

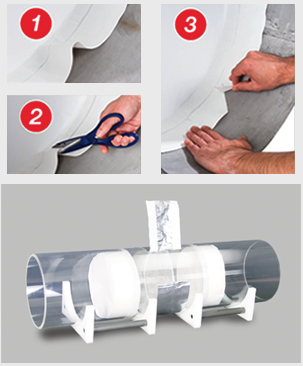

Adjusting to Create Proper Fit
The edges of EZ Purge must lay flat against the inner pipe wall. If any air pockets or puckered wrinkles are visible, the seal must be adjusted to yield the optimal results.

To maximize the dam’s seal, cut a slit in the adhesive portion of the dam that is allowing air to enter the purge chamber.

Then, simply overlap the cut ends to create the desired seal. Repeat as necessary to improve seal.

As with a torn dam, simply cover the ‘wrinkled’ area with slightly moistened Aquasol Water Soluble Tape.

Print Friendly

EZ Purge Non-Adhesive * ** ***

Item No Pipe Diameter case pack
English Metric
EZP-.50 1/2" 13 mm 1000
EZP-.75 3/4" 19 mm 1000
EZP-1.0 1" 25 mm 1000
EZP-1.25 1 1/4" 32 mm 1000
EZP-1.50 1 1/2" 38 mm 1000
EZP-2.0 2" 51 mm 1000
EZP-2.5 2 1/2" 63 mm 1000
EZP-3.0 3" 76 mm 1000

* Customer order
**Only sold in full case quantity
*** Does not include adhesive


EZ Purge Pre-Formed, Self Adhesive Water Soluble Purge Dams


EZ Purge® * **

Item No Pipe Diameter case pack*
English Metric
EZP-2 2" 51 mm 192
EZP-2.5** 2 1/2" 63 mm 192
EZP-3 3" 76 mm 192
EZP-4 4" 102 mm 48
EZP-5 5" 127 mm 48
EZP-6 6" 152 mm 48
EZP-8 8" 203 mm 48
EZP-10 10" 254 mm 48
EZP-12 12" 305 mm 48
EZP-14 14" 356 mm 24
EZP-16 16" 406 mm 24
EZP-18 18" 457 mm 24
EZP-20 20" 508 mm 24
EZP-22 22" 559 mm 24
EZP-24 24" 610 mm 24
EZP-26 26" 660 mm 24
EZP-28 28" 711 mm 24
EZP-30 30" 762 mm 24
EZP-32 32" 813 mm 24
EZP-36 36" 914 mm 24
EZP-40 40" 1016 mm 10
EZP-42 42" 1067 mm 10
EZP-44 44" 1118 mm 10
EZP-48 48" 1219 mm 10
EZP-52 52" 1321 mm 10
EZP-56 56" 1422 mm 10
EZP-60 60" 1524 mm 10
EZP-64 64" 1626 mm 10
EZP-72 72" 1829 mm 10
EZP-84 84" 2134 mm 10

*Sold in full or half case quantities
**Custom sizes available upon request


Print Friendly






21











Dissolve Aqueous Solution
Print Friendly

Aquasol® Water Soluble Products, including EZ Purge® Water Soluble Purge Dams, must be flushed with an aqueous solution or steam in order to dissolve. Contact Aquasol Corporation for further information.

Heat Affected Zone
Print Friendly

When welding, the EZ Purge dams must be placed far enough from the root gap so that the heat affected zone (HAZ) does not char or degrade the paper’s water soluble properties.
Recommend distances for placing EZ Purge from the root gap are listed below. These distances depend on the pipe diameter size (ID) or the recommended distance provided by the project engineer to move out of the HAZ.


Pipe Size
Recommended Distance
(English)
Recommended Distance
(Metric)
2 – 8" 6" 152 mm
10 – 22" 8" 203 mm
24 – 36" 12" 305 mm
40"+ 24" 610 mm
Flash Point
Print Friendly

EZ Purge is made from Aquasol® Water Soluble Paper, which has a flash point of 450°F (232°C).

Creating a Tight Seal
Print Friendly

To create a tight seal, first ensure the surface of the inner pipe has been cleaned and that no oils remain. This will increase the integrity of the seal. Once the dam is correctly positioned, the dam can be secured in place by introducing moisture to reactivate the adhesive and form a tight seal. Please note, it is recommended to use a lightly moistened sponge, and not a dripping sponge. Too much moisture will cause the paper and tape adhesive to start to dissolve.
For more information, please refer to our video at http://www.youtube.com/watch?v=77smUxzdDg8 minute marker 9:17.

Dry Tape
Print Friendly

If the water soluble tape becomes dry, lightly moisten it with a dampened cloth or foam brush. The adhesive will be reactivated instantaneously. Be careful not to saturate the cloth as the tape will dissolve.

Repostion the Seal
Print Friendly

The EZ Purge adhesive is engineered in such a way that it will not inhibit the user from placing the dam in proper position. The strength of the “tack” or stickiness of the adhesive allows the user to have control and reposition the dam if not properly placed on the first attempt.
To reposition EZ Purge, carefully remove the tape portion of dam from the sidewall of the pipe. Then move it to the desired location and apply additional Aquasol® Water Soluble Tape for reinforcement, if required

Adjust For Proper Fit
Print Friendly

If the size of EZ Purge does not exactly match the size of the pipe, it is easy to alter the dam to create the perfect desired fit. Simply cut the tape portion of dam as it is being inserted. Then overlap the cut ends to create the desired size. Repeat if necessary. If the pipe ID is slightly too big for the specific EZ Purge size, additional Aquasol® Water Soluble Tape can be added to reinforce the seal along the pipe wall.

Adhesive Dry Time
Print Friendly

It takes approximately 5 minutes for the EZ Purge adhesive liner to dry after being dampened for application.

Torn EZ Purge Dam
Print Friendly

If the water soluble EZ Purge dam tears accidentally during installation, simply cover torn spot with Aquasol® Water Soluble Tape.

Storage and Shelf Life
Print Friendly

EZ Purge has a shelf life of approximately one year. To increase shelf life, store EZ Purge in a dark, cool and humidity controlled environment. Ideal storage temperature is 70°F with approximately 50% humidity. EZ Purge should always be stored in the water proof package that is included with purchase. Contact with water must be avoided at all times. For easy reference, the manufacturing date is labeled on the bottom of each EZ Purge box.

Industries Used
Print Friendly

EZ Purge is used in various industries including off-shore oil rigs, refineries, fossil fuel plants, breweries, shipbuilding, processing plants (food, dairy, beverage, pharmaceutical), nuclear power plants, government and military, power plants, petrochemical plants, water treatments plants and much more.
