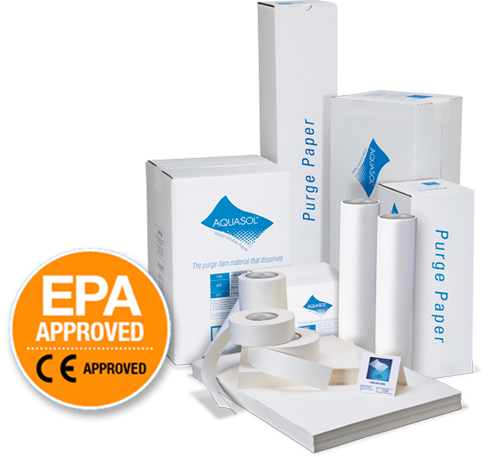

Aquasol®

WATER SOLUBLE PAPER AND TAPE

DISSOLVABLE
PURGE GAS BARRIER
FOR TIG WELDING

MADE IN THE USA
Print Friendly, PDF & Email
Print Friendly, PDF & Email






icon_0010_Layer-55icon_0002_Layer-47





Traditional purge systems present significant limitations as they are inefficient, costly, and labor-intensive. Additionally, conventional purge systems must be placed far from the weld zone (10-20 ft.) adding unnecessary inconvenience and costs to the welding process.

To overcome these limitations, Aquasol Water Soluble Paper and Tape were introduced. Together these components can be constructed by hand into unique purge dams. They are able to be placed within close proximity of the weld zone, thereby increasing efficiency of the entire welding process.

Aquasol Water Soluble Paper provides an excellent barrier used to retain noble gases such as argon and helium within the weld zone during TIG welding of stainless steel and aluminum pipes.

Comprised of sodium carboxyl methyl cellulose and wooden pulp, Aquasol Water Soluble Paper dissolves quickly and completely in most liquids, including water. Its 100% bio-degradable composition leaves no residue behind in the pipeline.

Aquasol Water Soluble Paper is available in a wide range of grades and sizes permitting the construction of purge dams for any pipe diameter. Extremely easy to store, non-toxic and environmentally friendly, Aquasol Water Soluble Paper is ideal for the nuclear, petrochemical, and food and beverage industries.

Print Friendly, PDF & Email




WSP_2.06.12_HR_ED_rolls.retouchedicon_0015_Layer-38icon_0014_Layer-60

Features and Benefits

Low Air Permeable Purge Gas Barrier for Any Pipe Diameter

  • Creates excellent barrier for retaining noble gas
  • Simple and fast construction that can be customized to fit various pipe schedules and sizes
  • Saves money on gas consumption as paper can be placed in close proximity to the weld zone, thereby using less inert gas to displace oxygen in the purge chamber
  • Easily secures to inner pipe wall with use of Aquasol Water Soluble Tape, creating an air-tight seal


Biodegradable & Safe

  • Made of sodium carboxy methyl cellulose & wooden pulp
  • EPA and CE approved
  • 100% biodegradable
  • Safe and accepted choice by nuclear, petrochemical, food and beverage industries



Easy Removal

  • Dissolves effortlessly and rapidly during water or steam hydro-test
  • No residue remains in the pipeline


Convenient

  • Paper rolls are individually packaged for convenient storage and shipping
  • Available in a wide range of sizes, grades and forms permitting construction of any pipe diameter


Print Friendly, PDF & Email










Step 1 photo Step 2 photo Step 3 photo Step 4 photoicon_0005_Layer-46icon_0006_Layer-44icon_0010_Layer-55icon_0003_Layer-54icon_0004_Layer-53icon_0002_Layer-47

How Aquasol Water Soluble Paper and Tape Work

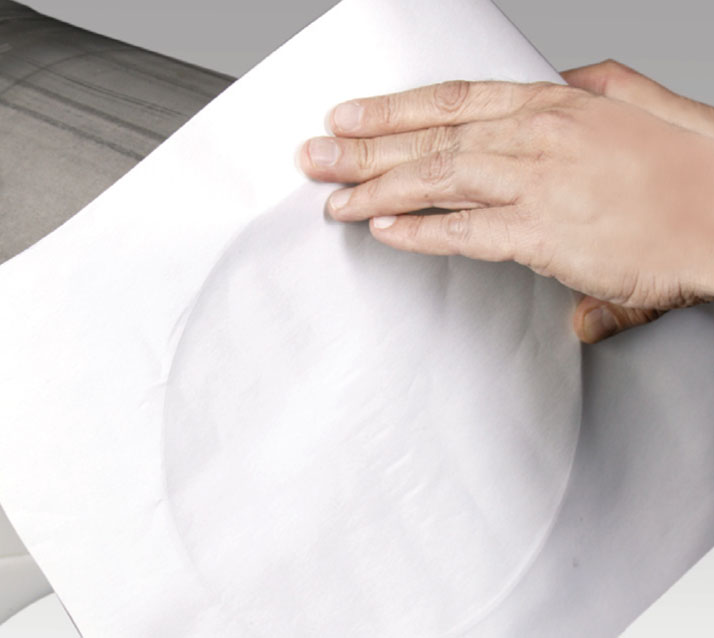

Trace and Impress
Trace pipe’s inner diameter by pressing paper along pipe edge, creating an impression. Then fold to form a 90° angle.

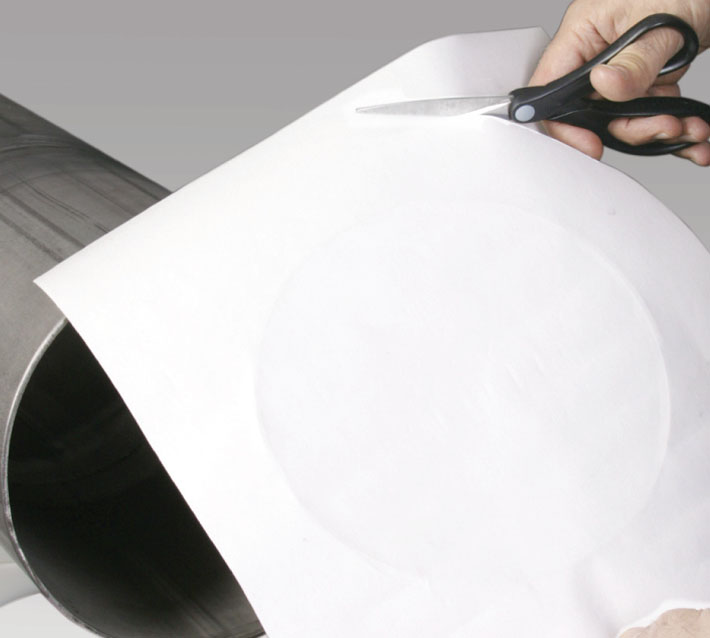

Cut
Cut in a circle around the impression, approximately one-third times greater than pipe diameter.

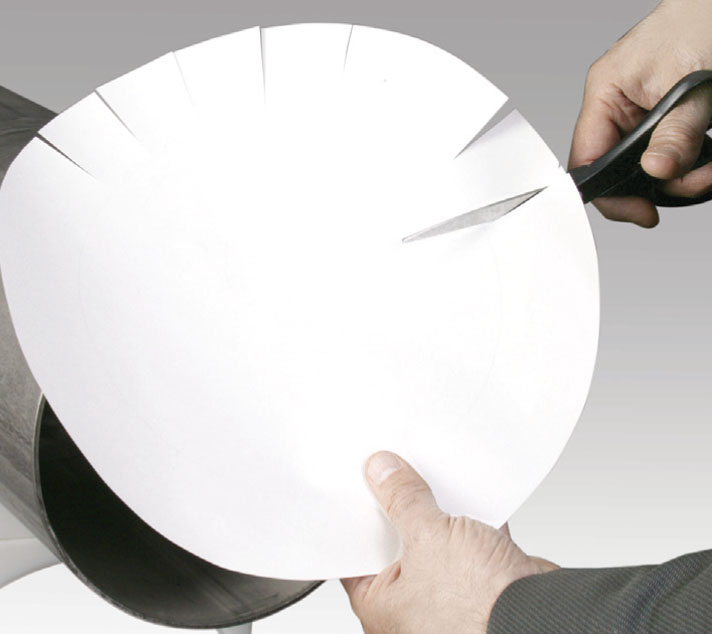

Slit
Slit approximately 1″ to 2″ segments perpendicular to impression on paper making first slit at 12 o’clock position followed by 3 o’clock, 6 o’clock and so on.

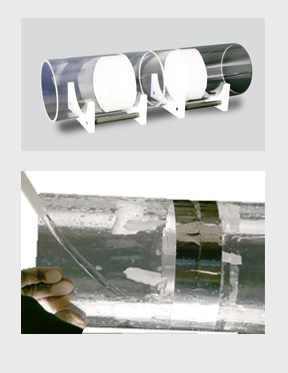

Position Inside Pipe and Tape in Place
Cut Aquasol Water Soluble Tape into pieces. Position slit Aquasol Water Soluble Paper dam inside pipe. Secure dam with tape pieces along the entire circumference.








ACTIVATE WATER SOLUBLE TAPE

Moisten Sponge
Moisten an ordinary sponge with water and squeeze out excess water until sponge is damp.












Lightly Dab
Lightly dab sponge along the water soluble tape portion of the dam. The dampened sponge will reactivate the adhesive to ensure low air permeability.










Repeat
Repeat process on the opposite side of the pipe to close the purge chamber parameters.






Introduce Gas
Insert purge gas needle into root gap and introduce noble gas, while ensuring connection to gas line.







Weld
Carry out the welding process.








Dissolve
Dissolve Aquasol Water Soluble Paper and Tape by introducing water when performing hydro-test.



Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape

Recommended Proximity to Weld Joint

Pipe Diameter Recommended Distance
English Metric English Metric
2" – 8" 51 – 203 mm 6" 152 mm
10" – 22" 254 – 559 mm 8" 203 mm
24" – 36" 610 – 914 mm 12" 305 mm


Specifications

Item No Thickness Dimensions Type Case Pack
English Metric
ASW-35/S-11RW .0035" 8 1/2" x 11" 22 cm x 28 cm Sheet 500 sheets/ream
ASW-35/S-14R .0035" 8 1/2” x 14” 216 mm x 355 mm Sheet 500 sheets/ream
ASW-35/S-22R .0035" 17" x 22” 431 mm x 559 mm Sheet 500 sheets/ream
ASW-60/S-22R .0070" 15 1/2" x 22” 52 cm x 56 cm Sheet 250 sheets/ream
ASW-35/R-9 .0035" 9" x 165' 23 cm x 50 m Roll 4 rolls/case
ASW-35/R-15 .0035" 15 1/2" x 165' 39 cm x 50 m Roll 4 rolls/case
ASW-40C/R20.5 .0050" 20 1/2" x 165' 52 cm x 50 m Roll 4 rolls/case
ASW-60/R-15 .0070" 15 1/2" x 165' 39 cm x 50 m Roll 4 rolls/case
ASW-60/R-31 .0070" 31" x 165' 79 cm x 50 m Roll 4 rolls/case
ASWT-1 N/A 1" x 300' 2.5 cm x 92 m Roll 24 rolls/case
ASWT-2 N/A 2" x 300' 5 cm x 92 m Roll 12 rolls/case


Selecting the Proper Grade

ASW-35 Use for pipes having 4" inner diameter or less
ASW-40C Use for greater gas retention
ASW-60 Use for pipes having 4" inner diameter or greater
ASWT Use to secure Aquasol Water Soluble Dam in place


Print Friendly, PDF & Email

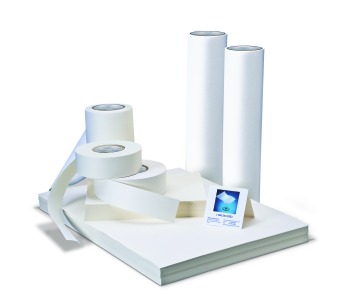

Paper_no_box.merged.2













Dissolvability
Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape dissolves in most aqueous solutions or steam.

Dissolve in Oil
Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape will not dissolve in oil or fuel. The products must be flushed with water, steam or an aqueous solution.

Dissolvability In Solvents
Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape cannot dissolve in solvents such as MEK or acetone. The products must be flushed water, steam or an aqueous solution.

Dissolve in Hot and Cold Water Temperatures
Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape will dissolve in either hot or cold water. However, the rate of dissolvability increases as the temperature of the water increases.

Flash Point
Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape has a flash point equivalent to ordinary paper, which is 450°F (232°C).

Safe Components
Print Friendly, PDF & Email

Aquasol Water Soluble Paper and Tape are CE and EPA approved.It is100% biodegradable and environmentally friendly. They are safe, non-toxic and will not cause reactions or adverse effects when used.

Dry Tape
Print Friendly, PDF & Email

Aquasol Water Soluble Tape is engineered in such a way that will allow the user to place the dam in the proper position before maximizing the adhesion of the seal. The strength of the “tack” or “stickiness” of the adhesive allows the user to have control and re-position the dam if not properly placed on the first attempt. Once the dam is positioned, the user can increase adhesion by reactivating the adhesive on the tape portion of the dam with a damp sponge. A tight seal will be formed as it dries, creating a zero air permeable environment.
